RFIC Transformer

This is an RFIC transformer example in a sample technology
with 4 metal layers. The files include equations to calculate the
coupling factor K from a two port analysis.

UWB Filter

This ultrawideband filter design was published in
IEEE microwave magazine, Vol. 11 No. 4, June 2010, p. 59
Original design by L. Han, K. Wu and X. Zhang

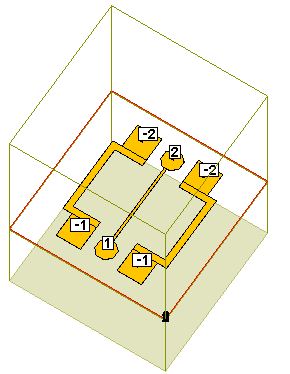

Modelling Wafer Probe Ports

This example demonstrates the use of  floating co-calibrated ports, to represent pads for wafer prober measurement.

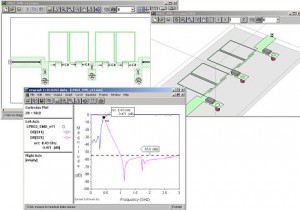

Sonnet Components

This example demonstrates the use of discrete components
in a Sonnet simulation model.

Three SMD capacitors are accurately embedded into the
filter layout, with perfectly calibrated component ports.

To open in the Sonnet project editor:
File > Import > Packed Project

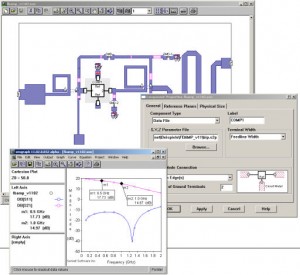

Sonnet Components

This is example demonstrates the use of discrete components
in a Sonnet simulation model.

One transistor (data set in the S2P Touchstone file format
and three SMD components are accurately embedded into
the filter layout, with perfectly calibrated component ports.

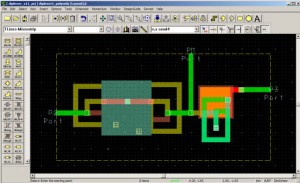

Sonnet interface for Agilent ADS

This example demonstrates the integration into Agilent ADS ,
including the “Update all from Momentum” feature.

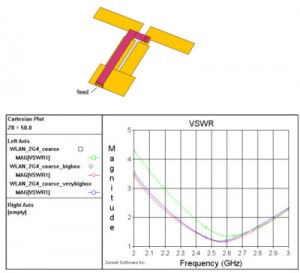

2.4GHz WLAN antenna

This antenna design was published at:
Huey-Ru Chuang and Liang-Chen Kuo,
“3-D FDTD Design Analysis of a 2.4-GHz Polarization-
Diversity Printed Dipole Antenna With Integrated Balun
and Polarization-Switching Circuit for WLAN and
Wireless Communication Applications”, IEEE
TRANSACTIONS ON MICROWAVE THEORY AND
TECHNIQUES, VOL. 51, NO. 2, FEBRUARY 2003
