Sonnet offers superior accuracy and reliability for PCB analysis.

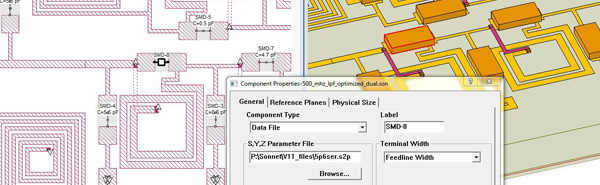

Sonnet Professional is the only EM solver where components are embedded into the analysis with perfectly calibrated component ports. No other EM simulator offers this level of accuracy for layout analysis with embedded active and passive components.
Sonnet can be used stand-alone, or integrated into the popular design frameworks Agilent ADS, AWR Microwave Office, Eagleware Genesys and others.

Sonnet advantages:

  • The most accurate and reliable planar EM analysis, based on 20+ years development
  • Unique perfectly calibrated component ports, for first time right designs with active and passive
    components on a PCB
  • The closed box approach used by Sonnet allows to predict coupling and resonance effects of the packaged PCB. Counter measures can be studied easily.
  • Use stand-alone or with seamless integration into Agilent ADS, AWR Microwave Office, Agilent Genesys and other design frameworks
  • Import and export PCB layouts in DXF, GDSII and Gerber file format
  • Very high dynamic range for verification of isolation and crosstalk
  • Fully calibrated internal, external and components ports
  • Flexible port definitions, including single ended, differential even and odd mode, grounded coplanar, floating coplanar and others, with full port calibration
  • Intuitive definition of geometry and material parameters
  • Export parameterized results in MDIF file format to ADS, MWO and other circuit simulators
  • Extract Pi equivalent circuit models and RLCG line parameters
  • Extract high quality broad band SPICE models for use in PSPICE, Spectre and other time domain simulators
